Product Overview
Model WF‑BM3832‑0128 is a DC12V LED injection‑molded module light with PVC housing, fixed by screws. It features wide beam angle and low light decay. Widely used for backlighting of advertising light boxes, signs and display cabinets. Modules can be connected in series or parallel for large‑area lighting projects.
Product Features
- Safe DC12V low‑voltage input;
- Durable PVC housing, screw‑on installation;
- 120° wide beam angle for even light output;
- Adjustable CCT:2700‑7000K;
- Low light decay:＜5% after 1000 hours operation;
- Support series & parallel connection for light box layout.
Application Scenarios

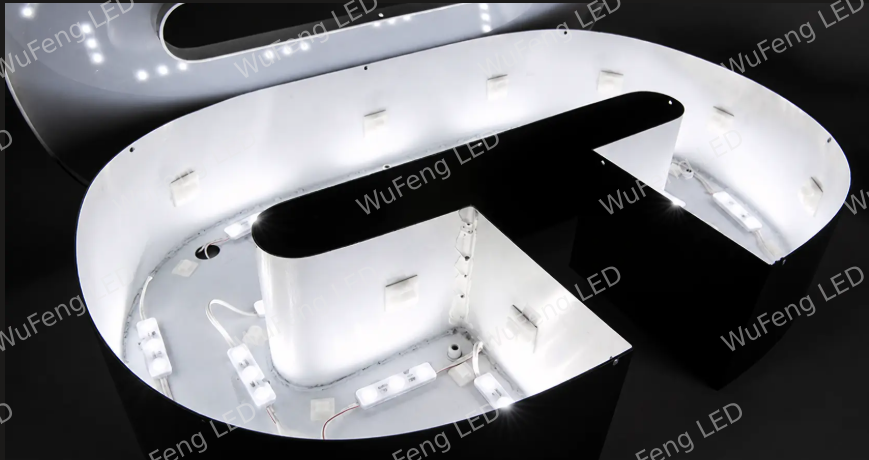

Advertising light boxes, signage, supermarket display cabinets, window backlighting, cabinet backlight illumination.
| Item | Parameter |
|---|---|
| Model | WF‑BM3832‑0128 |
| Input Voltage | DC12V |
| Power | Max 1.5W/PCS |
| CCT | 2700‑7000K |
| Beam angle | 120° |
| Luminous Flux | 50Lm |
| Light Decay | ＜5%@1000h |
| Operating Temperature | -20~50℃ |
| Storage Temperature | -20~60℃ |
| Material | PVC |
