Flush-Mount Type-A + Type-C Dual-Port Fast Charger
- Model：
- WF-CH36-AC
- Input voltage：
- DC12-24V
- Output：
- TYPE-A+TYPE-C:5V/2.4A+5V/2.4A
- IP Rating：
- IP20
- Certifications：
- Features：

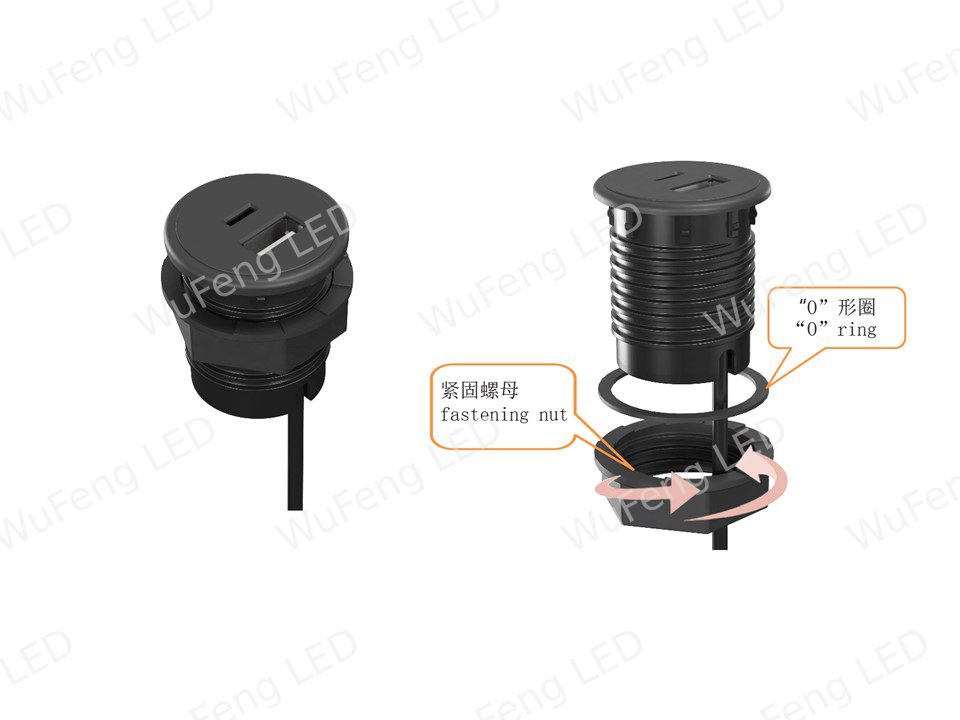

- An embedded dual-port fast charger designed for furniture, desktops, cabinets and other scenarios, supporting Type-A and Type-C output with fast charging on either single port. It features a nut-locking + O-ring anti-slip installation structure, fits panel thicknesses from 3-25mm, and the serrated nut provides firmer locking — convenient to install and safe to use.
Dual-Port Fast Charging Output
Equipped with Type-A and Type-C dual output ports, either port supports fast charging protocols when used alone, meeting the fast charging needs of phones, tablets, laptops and other devices.
Flush Hidden Installation
Round embedded design sits flush with the desktop/furniture surface after installation, sleek and unobtrusive, suitable for desks, nightstands, display cabinets, kitchen cabinets and various furniture applications.
Flexible Panel Thickness Adaptation

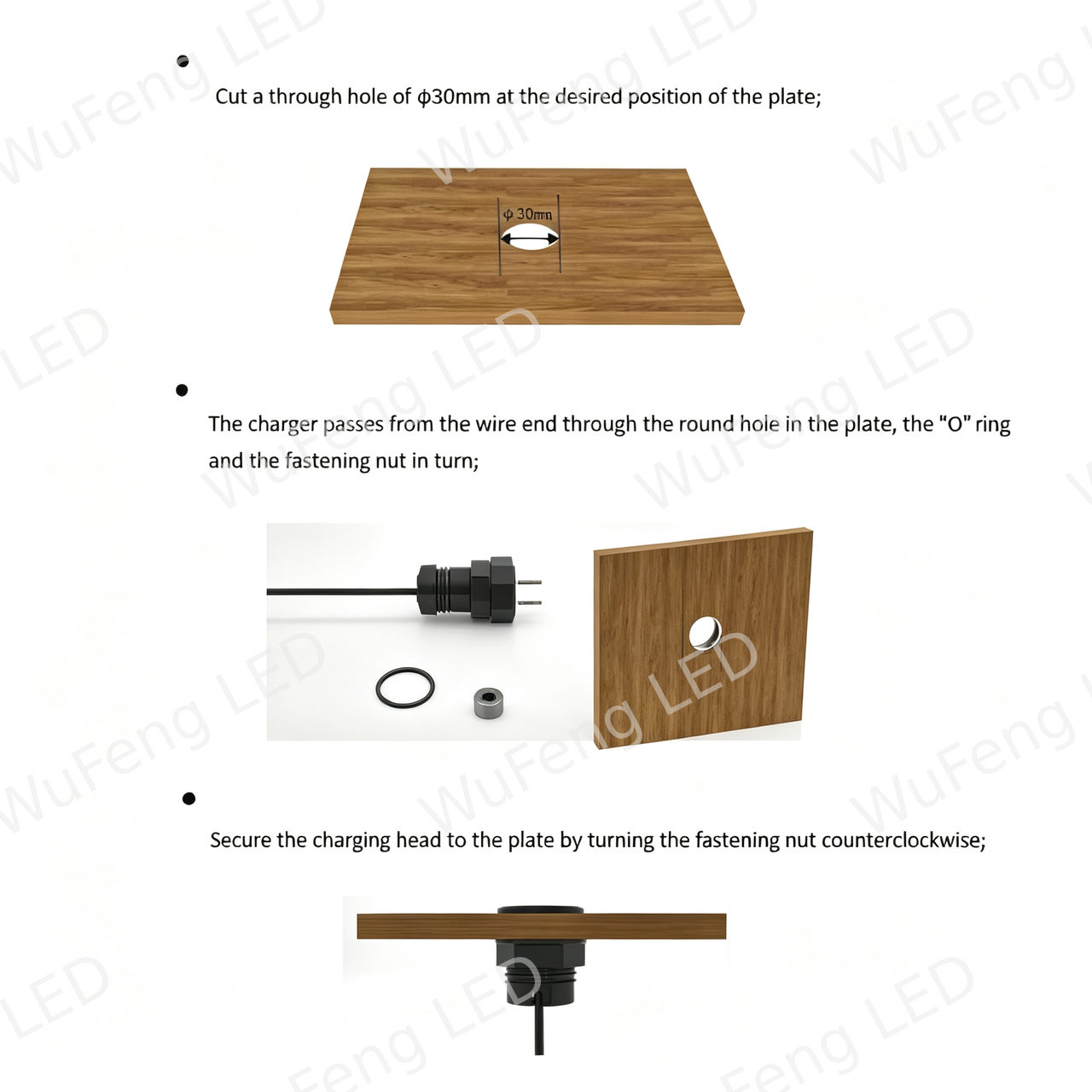

The tightening nut adjusts the locking distance according to panel thickness, fitting 3-25mm thick panels; the serrated nut design provides firmer locking, paired with an O-ring for anti-slip and anti-loosening, ensuring stable and reliable installation.
Easy Installation & Removal
Nut-locking structure allows quick installation and removal without professional tools; the flush-mount design is convenient to use, ideal for DIY and bulk furniture applications.
Wide Application Scenarios
Suitable for desks, conference tables, nightstands, hotel furniture, display cabinets, kitchen cabinets and various furniture/desktop scenarios, providing users with a convenient embedded fast charging solution.
| Category | Parameter Name | Parameter Value |
| Appearance Structure | Product Specification | 25(W)×13.5(H)×Length(L) mm |
| Material | PC | |
| Electrical Parameters | Input Voltage | DC12V |
| Power | MAX 10W/M(Customizable) | |
| Beam Angle | 120° | |
| Color Temperature Range | 2700K-6500K | |
| Luminous Flux | 560(±10%)Lm/M | |
| CRI | RA≥90 | |
| Lumen Depreciation | ≤5%1000h | |
| IP Rating | IP65 | |
| Other | Warranty | 20000hrs |
| Operating Temperature | -20℃~+40℃ | |
| Storage Temperature | -20℃~+60℃ | |
| RoHS Directive | (EU) 2015/863 |
