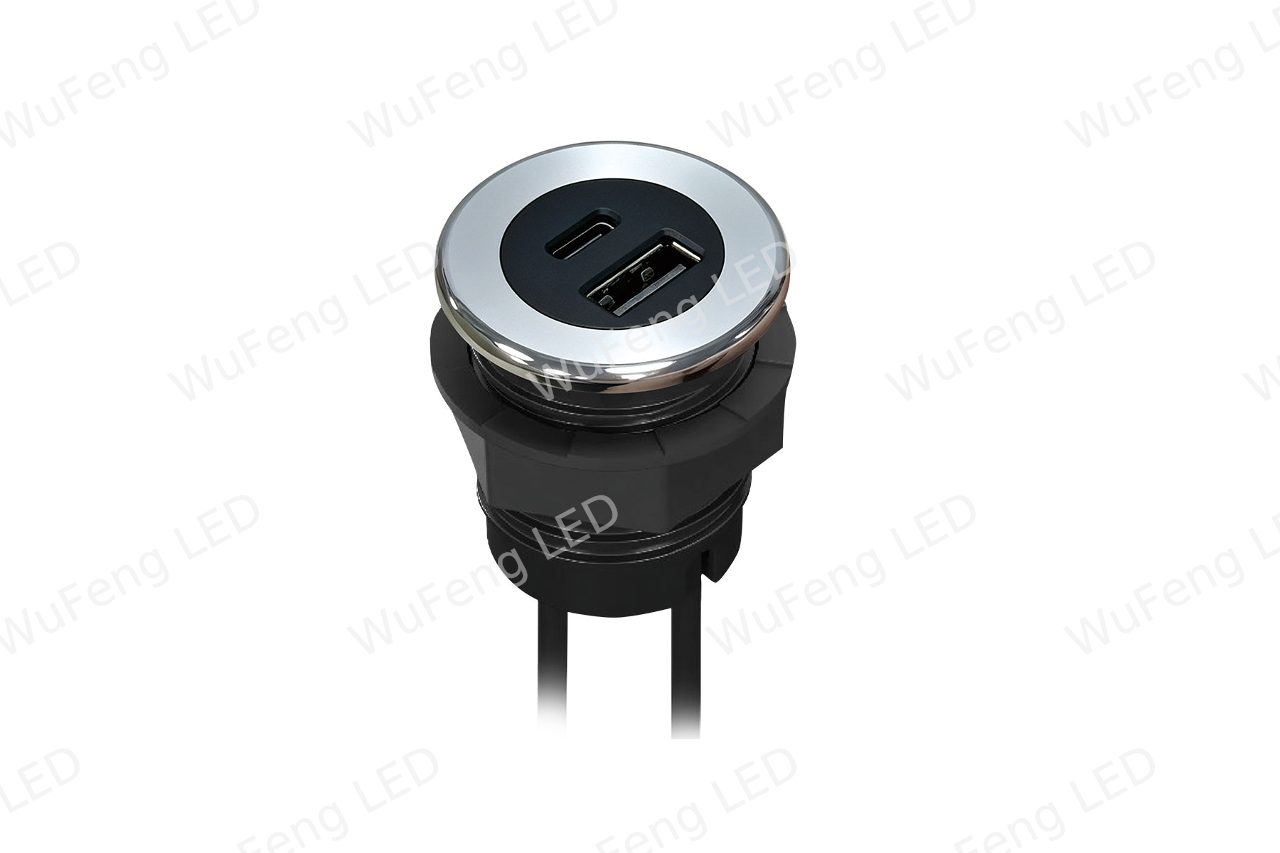

Recessed Touch Lighting Controller & Charger
- Model：
- WF-CH36-TC
- Input voltage：
- DC 12~24 V
- Output：
- Type-A+Type-C:5V/2.4A+5V/2.4A
- IP Rating：
- IP20
- Certifications：
- —
- Features：
- WF-CH36-TC Recessed touch dimming USB fast charging module, DC12~24V input. Integrated USB-A + Type-C dual-port fast charge and LED lighting control output. Touch control for on/off and stepless dimming; indicator light and fade function switchable. Recessed mounting, ideal for cabinets, wardrobes and furniture.
Product Features

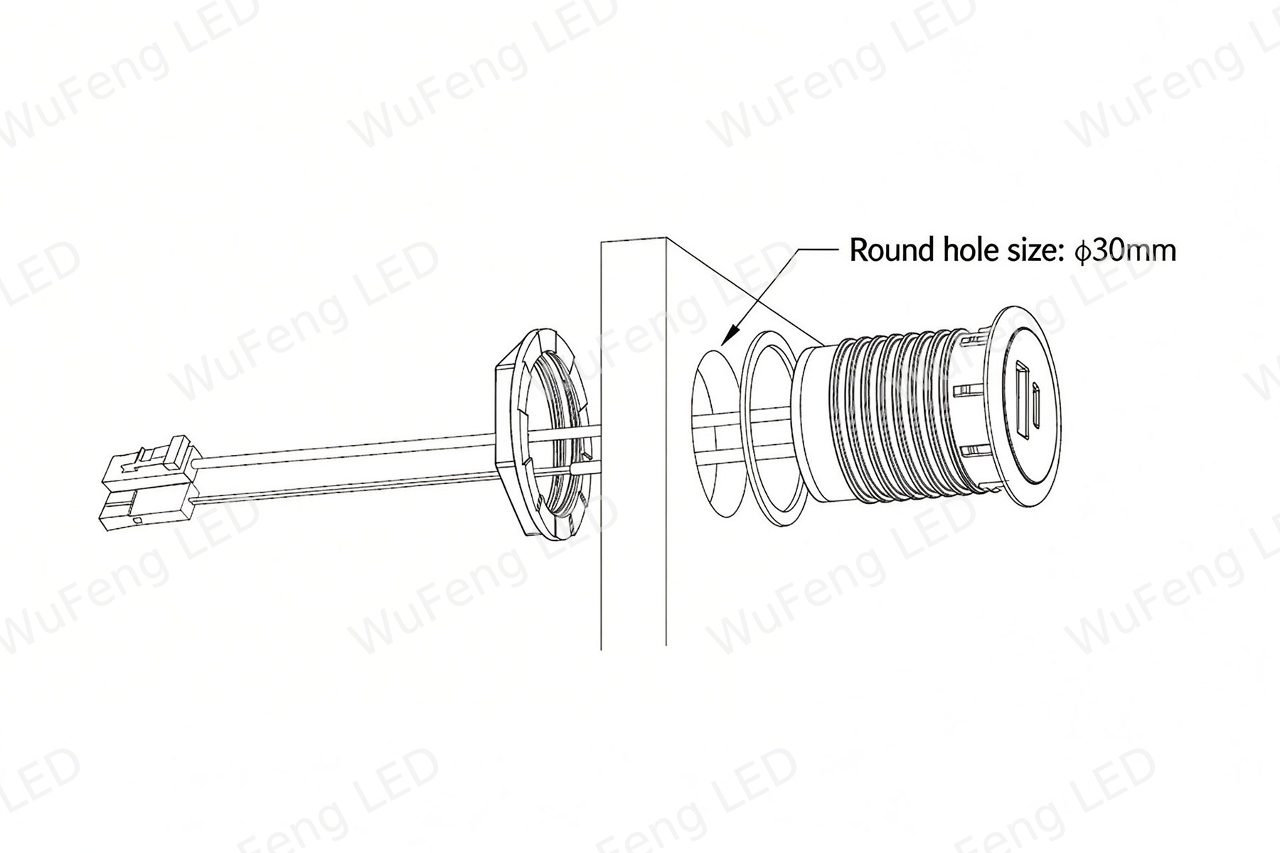

PC+ABS housing, recessed nut locking installation, suitable for 3–25mm panels. Serrated nut with O-ring for anti-slip and firm fixation. Dual-port fast charging + LED light control all-in-one. Both USB-A and Type-C ports support fast-charge protocols; automatic power distribution when both ports output simultaneously. Built-in touch control: single tap to turn light on/off (3s fade in & fade out); long press for stepless dimming, brightness locks upon release. Triple tap to toggle indicator light; long press for 10s while light off to enable/disable fade effect. Versatile functions, IP20 for indoor use, matching cabinets, wine cabinets, wardrobes and furniture.

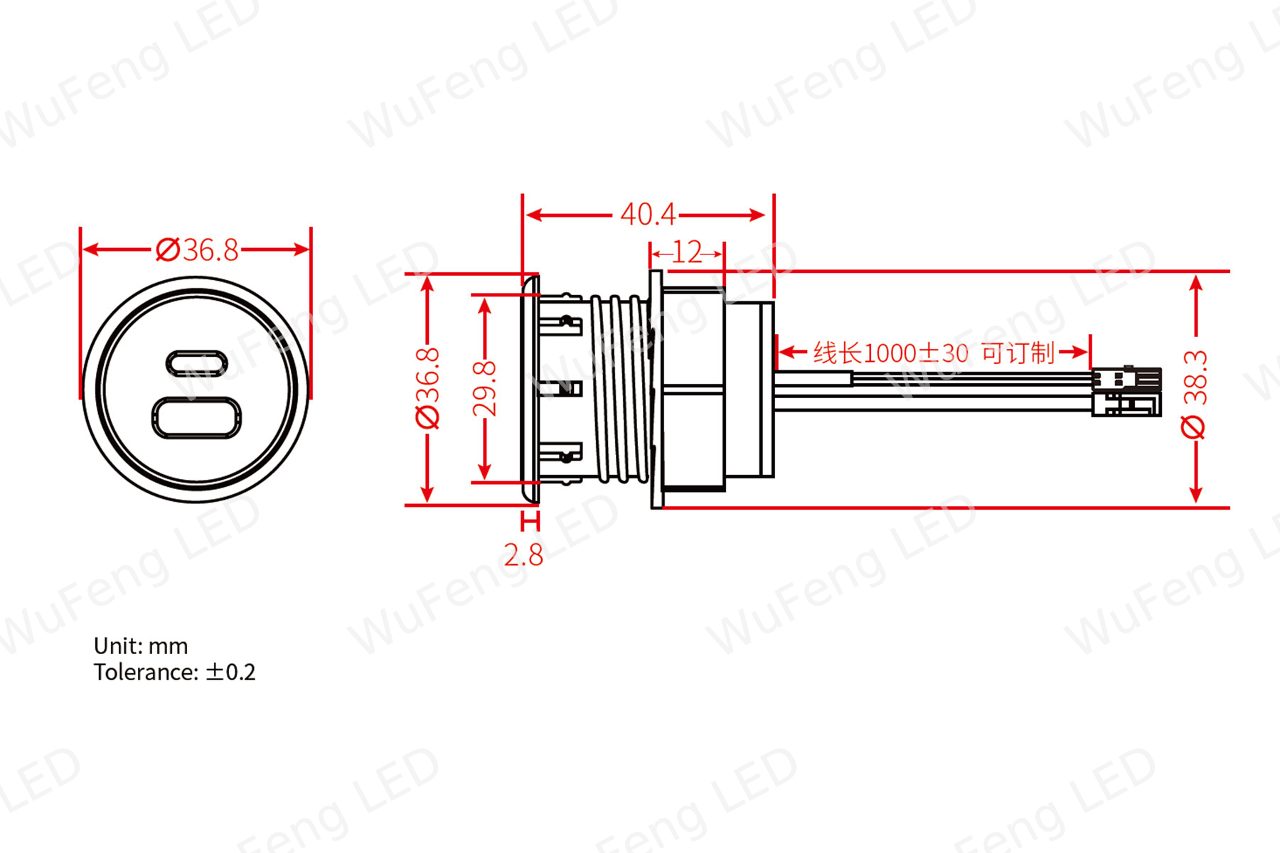

Structure & Process
PC+ABS housing, recessed mounting structure, serrated locking nut + O-ring anti-slip gasket, compatible with panel thickness 3–25mm; IP20 protection rating.
Electrical Performance
Input Voltage: DC12~24V. Supported fast charge protocols: DCP, QC2.0, QC3.0, FCP, SCP, AFC, MTK PE, PPS.
USB‑A Output: 5/9V=3A, 12V=3A @24V Input
Type‑C Output: 5/9V=3A, 12V=3A, 20V=2.25A @24V Input
Dual-port simultaneous output: Type‑A+Type‑C: 5V/2.4A+5V/2.4A
Max LED output: 5A. With plug detection and touch dimming control.
Working Environment
Operating temperature: -20℃~+40℃; Max housing temperature ≤85℃.
Application
Custom furniture such as cabinets, wine cabinets, wardrobes. Provides USB fast charging and LED lighting dimming control at the same time.
| Category | Item | Value |
| Basic Info | Model | WF-CH36-TC |
| Structure | Housing Material | PC+ABS |
| Installation Type | Recessed Nut Locking | |
| Compatible Panel Thickness | 3~25mm | |
| IP Rating | IP20 | |
| Electrical | Input Voltage | DC12~24V |
| Supported Fast Charge Protocols | DCP, QC2.0, QC3.0, FCP, SCP, AFC, MTK PE, PPS | |
| USB‑A Single Port Output | 5/9V=3A, 12V=3A@24V Input | |
| Type‑C Single Port Output | 5/9V=3A, 12V=3A, 20V=2.25A@24V Input | |
| Dual-port Simultaneous Output | Type‑A+Type‑C：5V/2.4A+5V/2.4A | |
| LED Output | 5A(MAX) | |
| Control | Control Function | Touch control: Single tap on/off (3s fade in & fade out); Long press for stepless dimming, lock brightness on release; Triple tap to toggle indicator light; Long press 10s with light off to enable/disable fade |
| Env. Parameter | Operating Temperature | -20℃~+40℃ |
| Max Housing Temp. | ≤85℃ |
