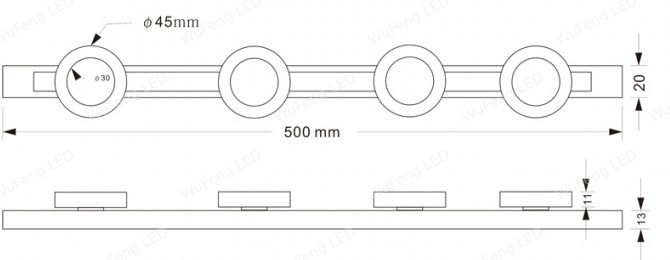

Outline drawing

• DimensionsDimensions(mm)Length customizable

Applications

This product is suitable for ,,,,Cabinet.,Brightness.

Specifications

Model(Model) : WF-GDLED50020-12V

Input Voltage(Input voltage):DC12V

Power(Max. power):Max 1.2W/PC

Switch Mode(Switching method):External switch

CCT(CCT) :2700-7000K

Luminance(Brightness) :90 Lm/PC

Beam angle(Beam angle) :120°

Light Decay(Lumen maintenance) :<5%@1000h

Certification(Certification):CE

Operating Temperature(Operating temperature) :-20 - 50℃

Storage temperature(Storage temperature) :-20 - 60℃

Material(Material) :AL+PC
