Product Features

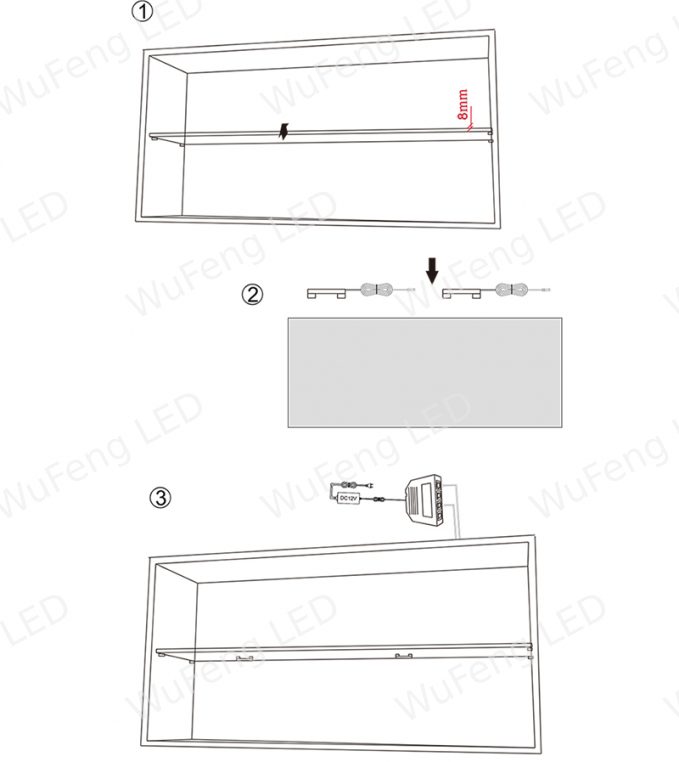

Rear‑mounted clip‑on design, can be directly clipped onto 8 mm‑thick glass shelves; low energy consumption & environmental‑friendly, long service life; soft light output with remarkable lighting effect and stable performance; low‑voltage operation for high safety; overall dimensions can be customized for special specifications.

Structure & Process

Overall dimensions can be customized for special specifications; Material: Steel; Switching mode: External switch.

Optical & Electrical Performance

DC12V low‑voltage power supply, max power per unit: 0.25W; CCT: 2700‑7000K; Beam angle: 120°; Light decay: ＜5%@1000h. *Actual values are related to color temperature and other factors; please refer to the test report for specific data.

Working Environment

Operating temperature: ‑20℃ ~ +50℃; Storage temperature: ‑20℃ ~ +60℃.

Application Scenarios

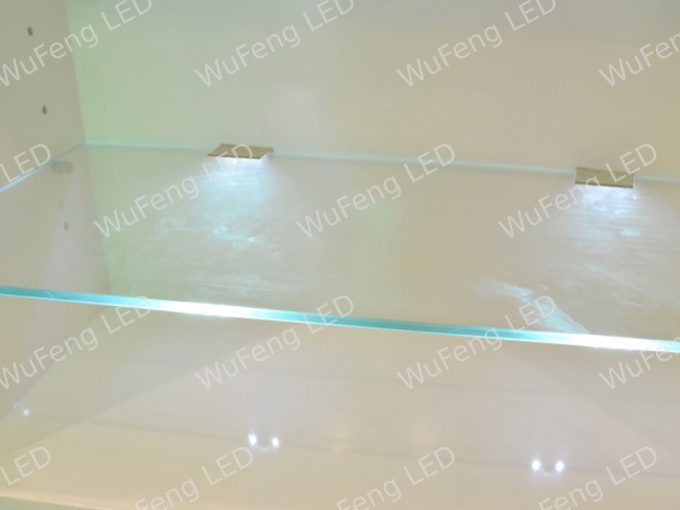

Suitable for decorative auxiliary lighting on glass shelves of cabinets, display cabinets and wine cabinets.

Category	Item	Specifications
Product Information	Model	WF‑JSD6616‑0335‑12V
	Housing Material	Steel
	Installation Method	Rear‑mounted clip for 8 mm‑thick glass
	Light‑emitting Mode	—
Optical Parameters	CCT	2700‑7000K
	Light Color	—
	Luminous Flux	—
	Beam Angle	120°
	Light Decay Rate	<5%@1000h
Electrical Parameters	Input Voltage	DC12V
	Power	Max 0.25W
	Switch Mode	External switch
Environmental Parameters	Operating Temperature	-20℃ ~ +50℃
	Storage Temperature	-20℃ ~ +60℃

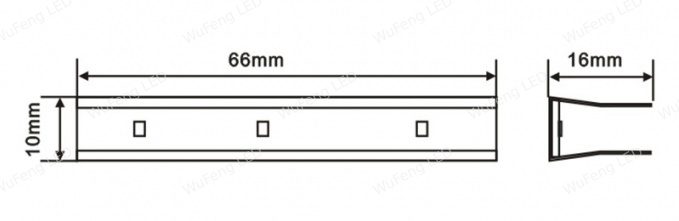

Note: External dimensions (mm) can be customized for special requirements. Actual values are related to color temperature and other factors; please refer to the test report for detailed data.
