Aluminum Linear Light (High‑brightness PC version)
- Model：
- WF-LT1609B
- LED density：
- 120灯/米
- CCT：
- 2700K-6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- 10W
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- This recessed linear light, model WF‑LT1609B‑6028‑12V‑T, adopts grooved recessed installation. Constructed with aluminum‑PC composite material, it is suitable for partial decorative lighting of cabinets, display cases, wardrobes, bookcases and other furniture. It supports smart control when paired with various sensor switches.
- Product Features
Composite aluminum + PC material with excellent heat dissipation. Equipped with 2835 LEDs, 120PCS per meter for sufficient light output. Luminous flux: 320‑380Lm/M, CRI Ra≥80. Low light decay and long service life. Customizable length up to 2500mm, suitable for various cabinet dimensions.
- Structure & Technology

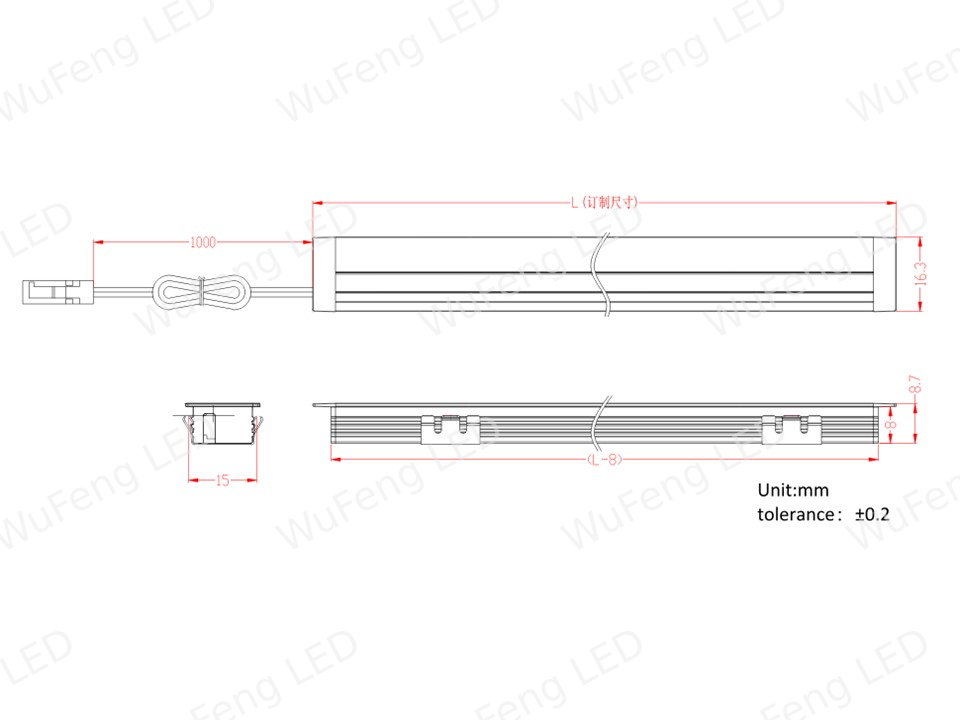

Material: Aluminum + PC. Dimension:16.3(W)×8.7(H)×L (customizable length, max.2500mm). Recessed grooved installation.
- Electrical Performance
Power supply: DC12V; Max.Power:10W/M; CCT:2700K‑6500K; Luminous flux:320‑380Lm/M; CRI:Ra≥80; Light decay rate:＜5%@1000h; IP Rating:IP20.
- Working Environment
Operating temperature:‑20℃~+50℃; Storage temperature:‑20℃~+60℃; Service life＞20000hrs.
- Application Scenarios
Partial decorative lighting for cabinets, display cabinets, wardrobes, bookcases. Compatible with external door‑contact, hand‑wave and touch sensor switches.
| Category | Concept | Value |
|---|---|---|
| Product Information | Model | WF‑LT1609B‑6028‑12V‑T |
| Dimensions | 16.3(W)×8.7(H)×L, customizable length, max.2500mm | |
| Material | Aluminum + PC | |
| LED Type | 2835 | |
| LED Qty. | 120PCS/M | |
| Installation | Recessed | |
| Electrical‑Optical | Power Supply | DC12V |
| Power | MAX 10W/M | |
| CCT | 2700K‑6500K | |
| Luminous Flux | 320‑380Lm/M | |
| CRI | Ra≥80 | |
| Light Decay Rate | ＜5%@1000h | |
| IP Rating | IP20 | |
| Environment & Lifetime | Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -20℃～+60℃ | |
| Lifetime | ＞20000hrs |
Note: All data subject to test report.
