Hand Sweep Sensor Cabinet Light
- Model：
- WF-LT2511B-6028-GIR-12V-T
- LED density：
- 120灯/米
- CCT：
- 2700-6500K可定制
- CRI：
- 80
- IP Rating：
- IP20
- Power：
- 10W/M
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- This is a DC12V low-voltage recessed hand sweep sensor LED linear light. It adopts a 25×11.6mm aluminum profile for embedded installation, widely used in cabinets, wardrobes and display cabinets. Non-contact hand sweep control brings convenient operation.
Product Features
Compact size for space‑saving recessed hidden installation without damaging cabinet appearance. GIR hand‑wave sensor for touch‑free on/off for better hygiene. Anodized aluminum housing with PC diffuser cover and stainless‑steel retaining clips for robust durability. Safe DC12V low‑voltage input. CRI RA≥80, low light decay, RoHS compliant.
Functional Advantages
GIR hand‑wave sensor: turn light ON/OFF by hand waving. DC12V low‑voltage power supply, adjustable CCT 2700K‑6500K, sufficient luminous flux with even soft light output. Model WF‑LT2511B‑6028‑GIR‑12V‑T delivers stable cabinet lighting, light decay＜5%@1000h, compatible with various low‑voltage cabinet LED lighting systems.

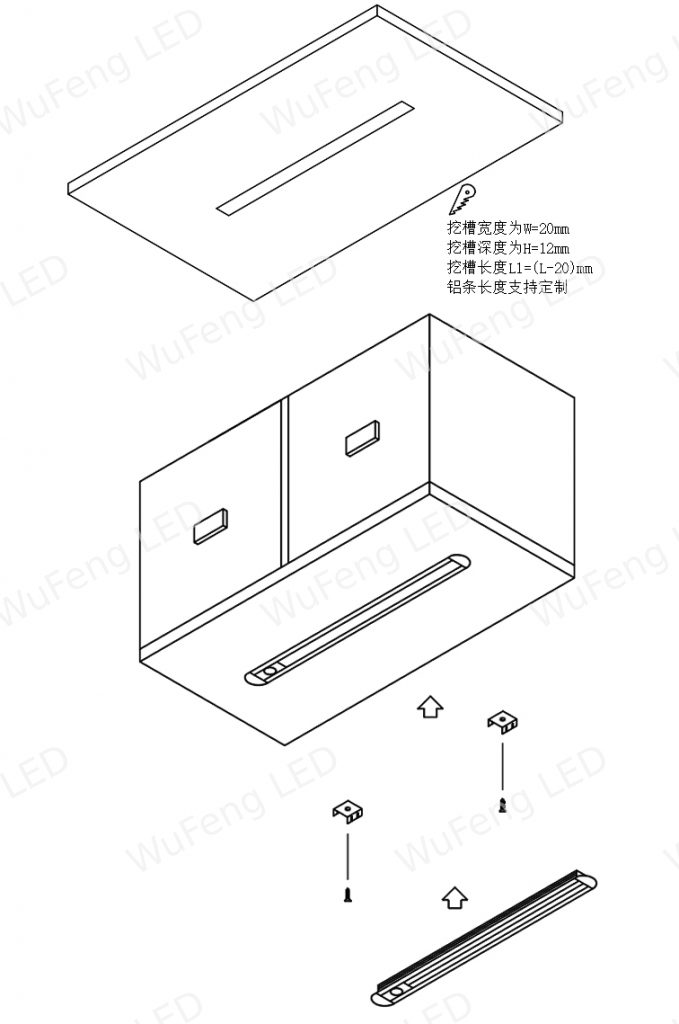

Installation Method
Recessed groove installation. Profile dimension 25×11.6mm, cut‑to‑length as required. Fix by embedding into groove, reinforced with stainless‑steel retaining clips. Easy installation, fits for inner space of various cabinets.
Application Scenarios
Widely used for local LED lighting of household cabinets, wine cabinets, wardrobes and commercial display cabinets.
Performance Parameters
| Category | Parameter Item | Parameter Value |
|---|---|---|
|
Product Info |
Model | WF-LT2511B-6028-GIR-12V-T |

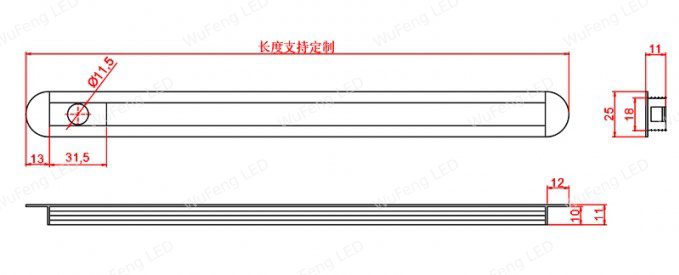

| Spec | 25×11.6×L (Customizable Length) mm | |
| Lamp Body Material | AL Anodized Aluminum | |
| Lampshade Material | PC | |
| Installation | Recessed (With Stainless Steel Retaining Clip) | |
| Surface Treatment | Anodizing | |
| Package | PE Bag | |
|
Electrical Parameter |
Input Voltage | DC12V |
| Power | 10W/M (±10%) | |
| CCT | 2700K–6500K | |
| Luminous Flux | 460Lm/M (±10%) | |
| CRI | Ra≥80 | |
| Control Mode | GIR Hand Sweep Sensor, Non-contact | |
|
Performance & Protection |
IP Rating | IP20 |
| Rated Lifespan | 20000 hours | |
| Light Decay @1000h | ＜5% | |
| Operating Temperature | -20℃ ~ +40℃ | |
| Storage Temperature | -20℃ ~ +60℃ | |
| Environmental Standard | RoHS (EU)2015/863 | |
| Application | Usage Scenarios | Cabinets, wine cabinets, wardrobes, display cabinets, entryways, staircases, indoor local lighting |
