Product Overview

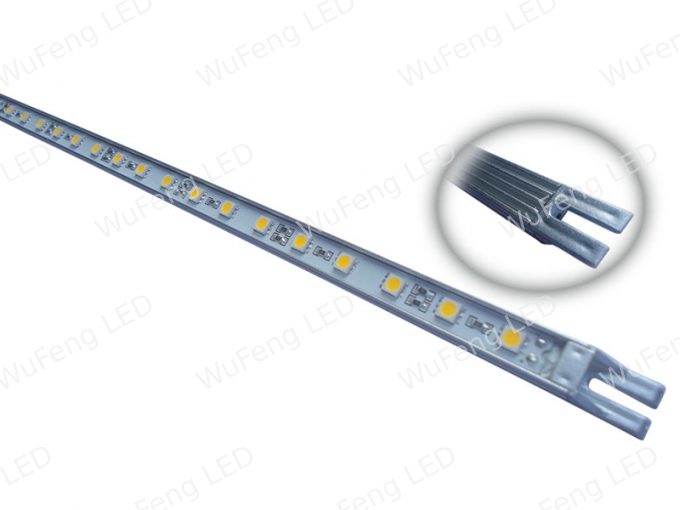

Model WF‑LT50012A‑3050 is an LED aluminum strip light with aluminum housing. It adopts DC12V low‑voltage design, low energy consumption, energy‑saving, eco‑friendly and long service life. It provides soft glare‑free light, no noise, no flicker and UV‑free without harming human health. 120° wide beam angle brings wide irradiation range and stable performance. Installed by screws and controlled by external switch, suitable for inner lighting of various furniture cabinets. Actual data varies with CCT, please refer to test report for exact values.

Product Features

1. Aluminum housing, low energy consumption, energy‑saving, eco‑friendly, long service life;
2. Working at DC12V low voltage, safe, reliable and stable performance;
3. Soft light source,120° wide beam angle, wide irradiation range;
4. No noise, no flicker, UV‑free, harmless to human health;

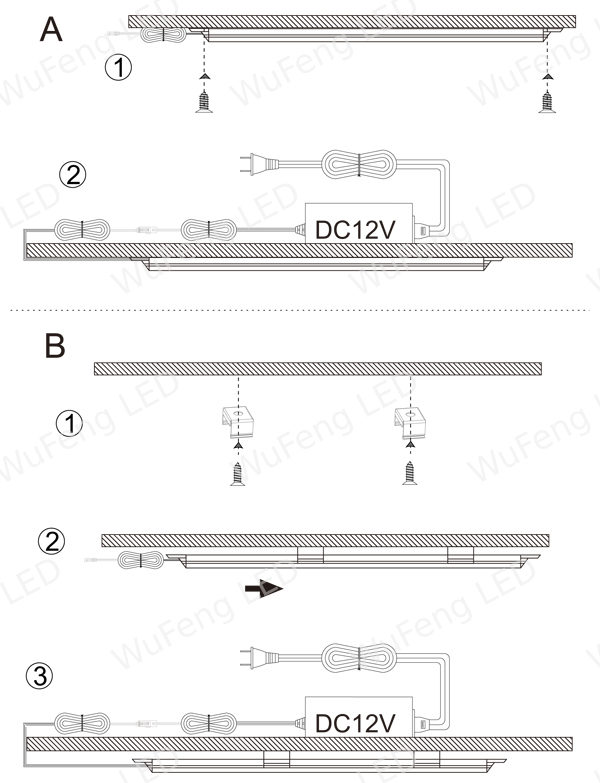

5. Screw‑fix installation, easy assembly;
6. Controlled by external switch, CE certified;
7. Low light decay:＜5% after 1000‑hour operation.

Application Scenarios

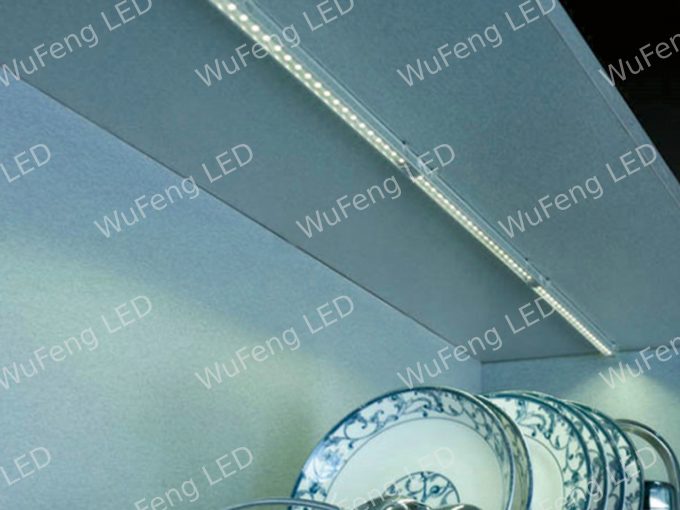

Cabinets, wardrobes, display cabinets, bookcases, wine cabinets and other furniture inner lighting.





Item	Parameter
Model	WF‑LT50012A‑3050
Input Voltage	DC12V
Max Power	Max 7.2W
Switch Mode	External Switch
CCT	2700‑7000K
Luminous Flux	450Lm
Beam angle	120°
Light Decay	＜5%@1000h
Certification	CE
Operating Temperature	-20~50℃
Storage Temperature	-20~60℃
Material	AL
