- Product Features

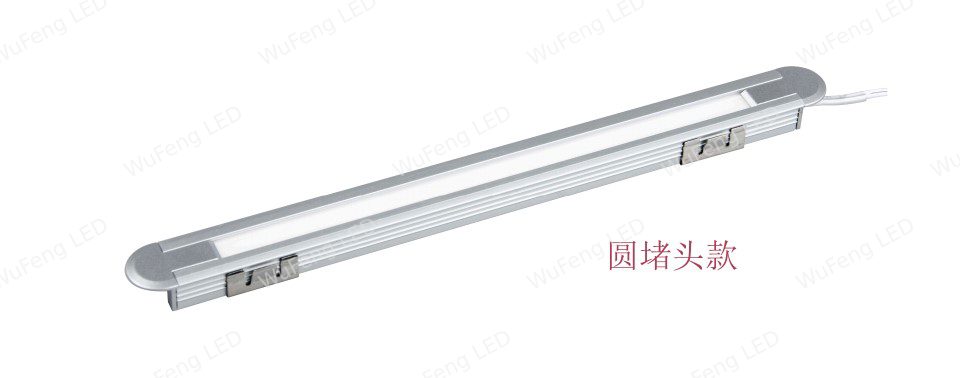

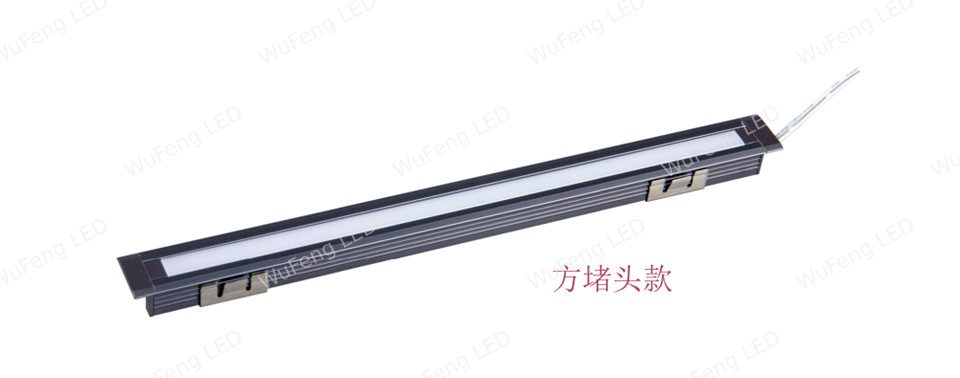

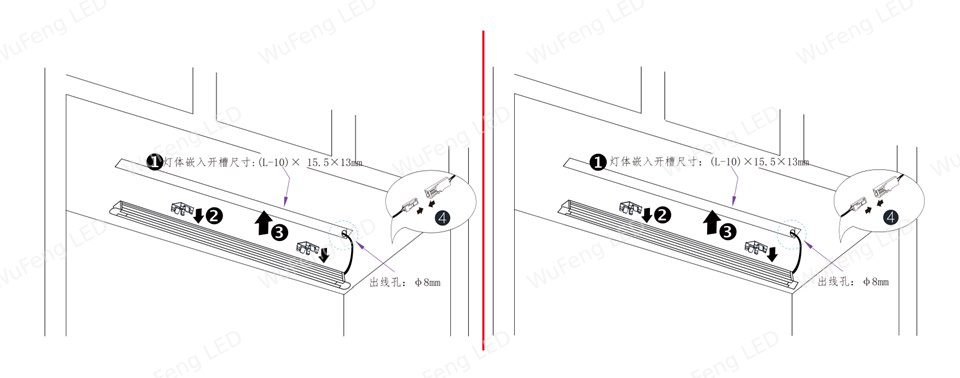

Anodized aluminum housing and PC lampshade; housing available in silver, black and iron‑gray; two end‑cap styles: semicircular and square. Install with fixing clips for easy assembly and disassembly. Low light decay, high color rendering for true‑to‑life color reproduction. DC12V low‑voltage input for safe operation.
- Structure & Process

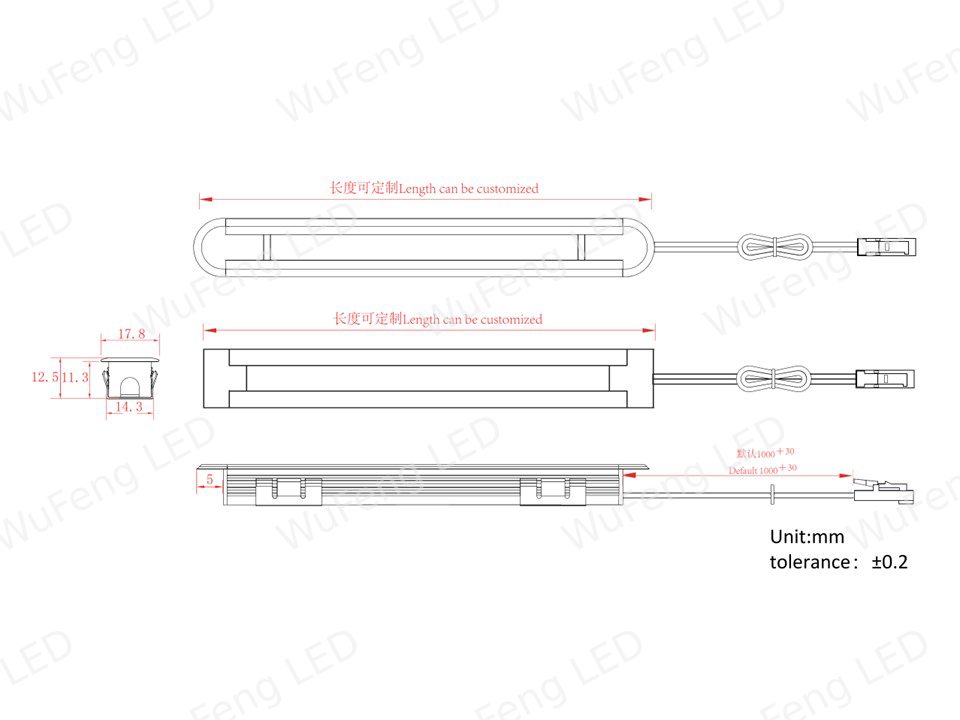

Product dimension: 17.8 (W)×12.5 (H)×Length (L) mm, customizable length. Housing: anodized aluminum; Lampshade: PC.
- Optical & Electrical Performance
DC12V power supply, rated power 8W/M (customizable); beam angle 120°; color temperature 2700K‑6500K (customizable); luminous flux 300 (±10%) Lm/M; color rendering index RA≥90; light decay＜5% after 1000 hours.
- Working Environment & Service Life
Ingress protection IP20; 20000hrs warranty; operating temperature ‑20℃～+40℃; storage temperature ‑20℃～+60℃; compliant with RoHS (EU) 2015/863 directive.
- Application Scenarios
For embedded cabinet lighting of household cabinets, wardrobes, wine cabinets and commercial display cabinets.
| Category | Parameter Item | Parameter Value |
| Appearance & Structure | Dimension(W×H×L) | 17.8×12.5×Length（mm） |
| Housing Material | Anodized Aluminum | |
| Lampshade Material | PC | |
| Electrical Parameters | Input Voltage | DC12V |
| Power | 8W/M (customizable) | |
| Beam Angle | 120° | |
| Color Temperature | 2700K‑6500K (customizable) | |
| Luminous Flux | 300(±10%)Lm/M | |
| CRI | RA≥90 | |
| Light Decay | ＜5%@1000h | |
| Others | Ingress Protection | IP20 |
| Warranty | 20000hrs | |
| Operating Temperature | -20℃～+40℃ | |
| Storage Temperature | -20℃～+60℃ | |
| RoHS Directive | (EU)2015/863 |
Note: Actual values are affected by color temperature and other factors. Refer to test report for detailed data.
