Recessed PIR Motion Sensor Linear Light
- Model：
- WF-LTQ50020-6028-PIR-12V
- LED density：
- 120LED/m
- CCT：
- 2700~6500K
- CRI：
- 90
- IP Rating：
- IP20
- Power：
- 10W/m
- Installation Methods：
- PitMounted
- Certifications：
- Features：
- Recessed PIR motion‑sensor linear light, DC12V low voltage, high CRI Ra＞90, anodized aluminum housing for good heat dissipation, IP20, custom length available, intelligent supplementary lighting for cabinets, display cases and wardrobes.
- Product Features Integrated embedded PIR human‑body motion sensor, auto‑on when people approach. Anodized aluminum lamp body provides excellent heat dissipation and anti‑fading performance. PC lampshade delivers even & soft light output. Stainless steel retaining clip ensures firm embedded installation. High CRI Ra＞90 for true‑to‑life color reproduction. Low light decay, customizable length, safe DC12V low‑voltage power supply.

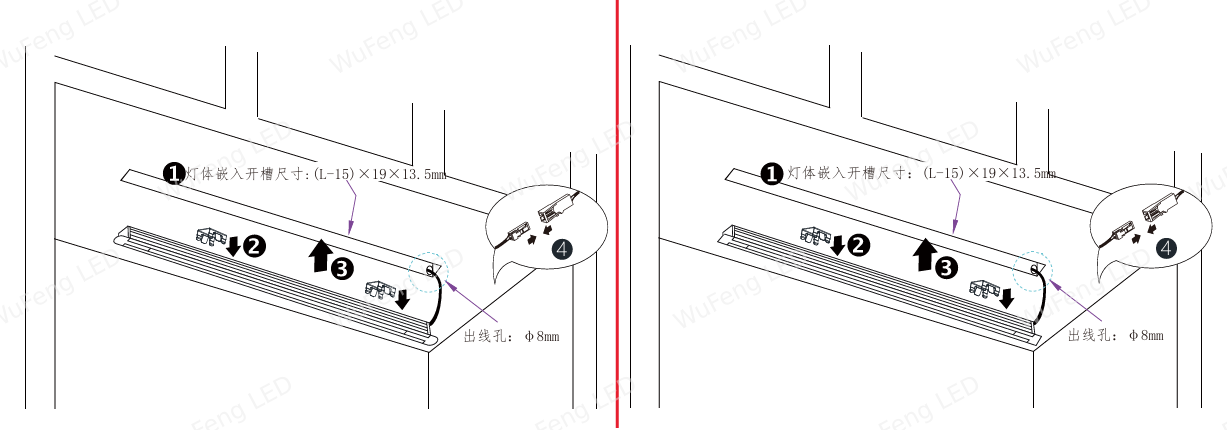

- Structure & Craft Lamp body: anodized aluminum; Lampshade: PC; Retaining clip: stainless steel. Dimension:20(W)×19.6(H)×L(Length) mm, length customizable. Embedded groove‑in installation.
- Electrical Performance Input voltage: DC12V; Power:5W/M(±10%); CCT:2700K‑6500K; Luminous flux:160(±10%)Lm/M; CRI:Ra＞90; Induction: PIR human‑body sensor; Light decay:＜5%@1000h; IP rating:IP20.
- Working Condition Operating temperature:‑20℃~+40℃; Storage temperature:‑20℃~+60℃; 20000hrs quality guarantee; Compliant with RoHS (EU) 2015/863.
- Application Scenarios Local decorative lighting & inner supplementary lighting for cabinets, display cabinets, shelves, wine cabinets and wardrobes. Built‑in PIR motion sensor realizes intelligent light control.
Specification
| Category | Parameter | Specification |
| Appearance Structure | Dimension | 20(W)×14(H)×Length (mm) |
| Material‑Lamp body | Anodized Aluminum | |
| Material‑Lampshade | PC | |
| Electrical Parameter | Input Voltage | DC12V |
| Power | 5W/M(Power can be customized) | |
| Luminous Angle | 120° | |
| Color Temperature Range CCT | 2700K‑6500K(CCT can be customized) | |
| Luminous Flux | 160(±10%)Lm/M | |
| Color Rendering Index | Ra≥90 | |
| Light Decay Rate | ＜5%@1000h | |
| Others | Protection Class | IP20 |
| Quality Guarantee | 20000hrs | |
| Operating Temperature | ‑20℃～+40℃ | |
| Storage Temperature | ‑20℃～+60℃ | |
| RoHS Directive | (EU)2015/863 |
