Curved Handleless Light Strip
- Model：
- WF-SRDT0408-12V-L
- LED density：
- 144pcs/M
- CCT：
- 2700-7000K
- CRI：
- 80
- IP Rating：
- IP65
- Power：
- 12W/M
- Certifications：
- —
- Features：
- This is a DC12V soft silicone curved handleless light strip, with 144pcs 2835 LEDs per meter, power 12W/M. Minimum cuttable length: 20mm, IP65 rated, Ra≥80, lifespan＞20000 hours. Flexible and bendable, designed for curved handleless groove lighting of cabinets.
Features
Made of soft silicone for curved handleless cabinet lighting; minimum cut at 20mm to customise length; 144pcs 2835 LEDs per meter, colour temperature 2700–7000K customizable; flexible silicone body for regular bending to fit curved grooves; potted and sealed terminals, IP65 dustproof & moistureproof for stable performance; low light decay, service life＞20000 hours.
Made of soft silicone for curved handleless cabinet lighting; minimum cut at 20mm to customise length; 144pcs 2835 LEDs per meter, colour temperature 2700–7000K customizable; flexible silicone body for regular bending to fit curved grooves; potted and sealed terminals, IP65 dustproof & moistureproof for stable performance; low light decay, service life＞20000 hours.
Structure & Process

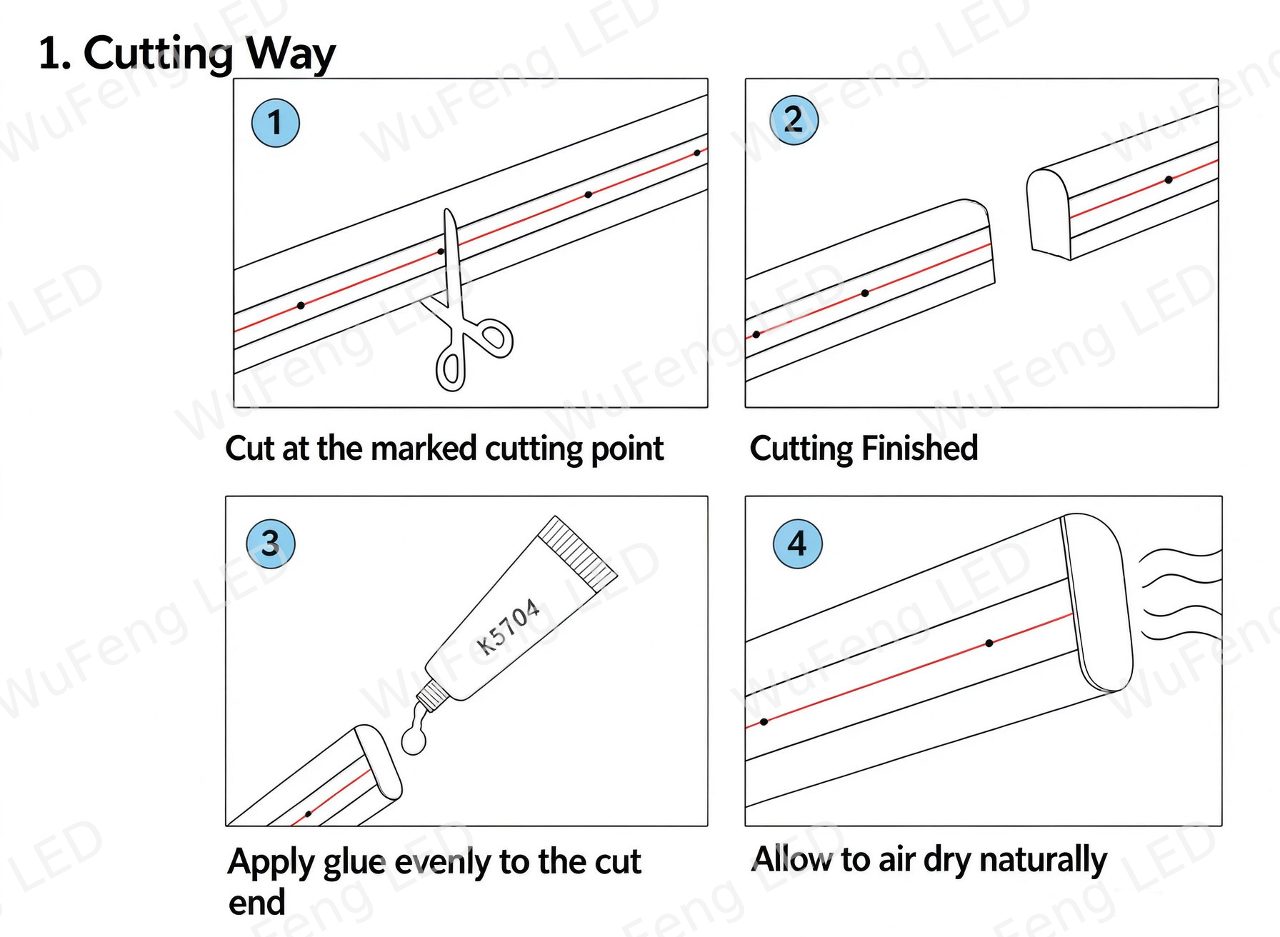

Soft silicone material. Minimum cut length 20mm, cut only at marked positions. Cut ends shall be sealed with glue, IP65 protection, lifespan＞20000 hours.
Soft silicone material. Minimum cut length 20mm, cut only at marked positions. Cut ends shall be sealed with glue, IP65 protection, lifespan＞20000 hours.
Optical & Electrical Specifications
DC12V low voltage input, 12W per meter, 2835 SMD LEDs, 120° wide beam angle, Ra≥80, light decay＜5%@1000h, colour temperature 2700–7000K customizable.
DC12V low voltage input, 12W per meter, 2835 SMD LEDs, 120° wide beam angle, Ra≥80, light decay＜5%@1000h, colour temperature 2700–7000K customizable.
Operating Environment
Operating temperature: -20℃ ~ +40℃; Storage temperature: -20℃ ~ +60℃
Operating temperature: -20℃ ~ +40℃; Storage temperature: -20℃ ~ +60℃
Application
Recessed lighting for curved handleless grooves of kitchen cabinets, wardrobes, wine cabinets; ambient lighting for curved cabinet corners.
Recessed lighting for curved handleless grooves of kitchen cabinets, wardrobes, wine cabinets; ambient lighting for curved cabinet corners.
| Category | Parameter Item | Value |
| Appearance & Structure | Product Size | 0408, customizable length |
| Material | Flex Silicon | |
| Min. Cut Length | 20MM | |
| Electrical | Input Voltage | DC12V±5% |
| Max. Power | 12W/M | |
| LED Type | 2835 SMD | |
| LED Quantity | 144Pcs/M | |
| Optical | Beam Angle | 120° |
| CCT Range | 2700K‑7000K (customizable) | |
| Luminous Flux | 200(±10%)Lm/M | |
| CRI | RA≥80 | |
| Light Decay | ＜5%@1000h | |
| Others | IP Rating | IP65 |
| Lifespan | ＞20000hrs | |
| Operating Temp. | -20℃～+40℃ | |
| Storage Temp. | -20℃～+60℃ |
Note: Actual values vary with colour temperature and other factors. Refer to test report for final data.
