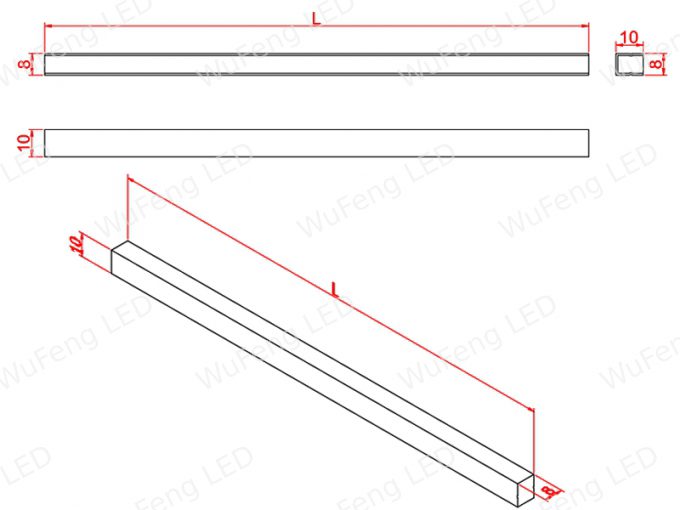

Outline drawing
- DimensionsDimensions(mm)Length customizable
- Low energy consumption, eco-friendly, long service life
- Soft luminance, stable performance
- Low-voltage operation, safe and reliable
- :
◇ Features
Product introduction
This product is a RecessedLEDAluminum Profile Light ,Uniform illumination,Cabinet,Showcase,Use.
Specifications
- Actual values vary with CCT etc.; data subject to test report
Model(Model) :WF-LT0810
Input Voltage(Input voltage):DC12V
Power(Power):10W/M
Switch Mode(Switching method):External switch
CCT(CCT) :2700-7000K
Luminous flux(Luminous flux):850Lm/M
Beam angle(Beam angle) :120°
Light Decay(Lumen maintenance) :<5%@1000h
Operating Temperature(Operating temperature) :-20 - 50℃
Storage temperature(Storage temperature) :-20 - 60℃
Material(Material) :AL+PC
