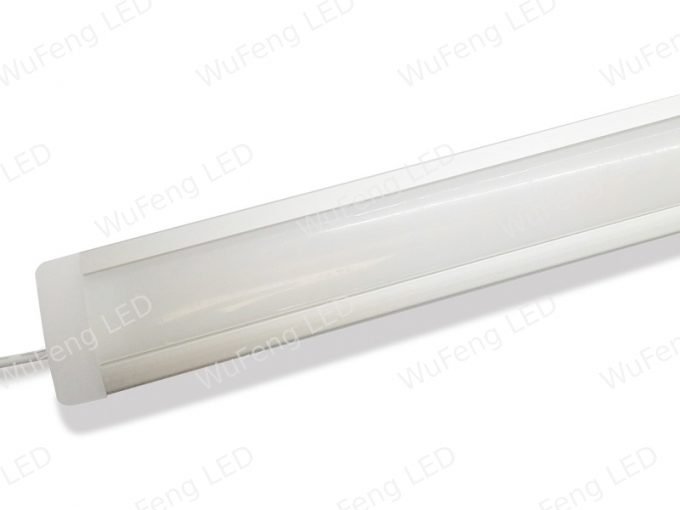

Recessed Cabinet Light
- Modelo：
- WF-LT50025
- Input voltage：
- DC12V
- IP Rating：
- IP20
- Power type：
- Certificaciones：
- —
- Características：
- Recessed Cabinet Light
Edition Recessed Linear LightModel WF-LT50025-6028-12V-T,slot recessed,Light PC Light,Cabinet,Showcase,Furniture,Sensor SwitchUse.
Features
Light,,Fade-resistant;PC Light,Beam angle 120°,Wide illumination coverage;Power,Luminous flux; RA≥90,;,Long service life,,.
LightMaterial,;Light PC; 25()×8()×L()mm,Length customizable;Recessed.
Input voltage DC12V,Power 8W/M(Power);CCT 2700K–6500K(CCT);Luminous flux 460 (±10%) Lm/M, RA≥90;Lumen maintenance＜5%@1000h,IP rating IP20.
Operating temperature‑20℃~+40℃,Storage temperature‑20℃~+60℃; 20000 , RoHS(EU)2015/863 .
Applications
Cabinet,Showcase,Furniture,Door Sensor,Hand Sweep,Touch Sensor Switch Smart Light.
| Model | WF-LT50025-6028-12V-T | |

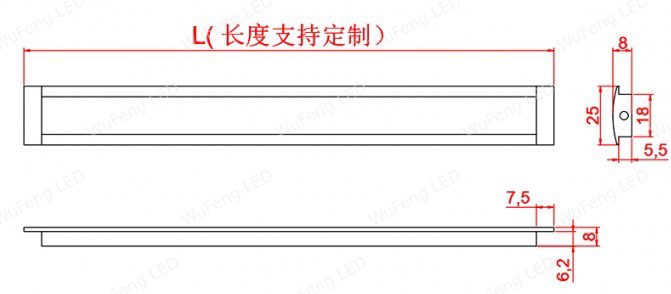

| 25(W)×8(H)×L()mm,Length customizable | ||
| Material | Light:;Light:PC | |
| Recessed | ||
| Input voltage | DC12V | |
| Power | 8W/M(Power) | |
| Beam angle | 120° | |
| CCT CCT | 2700K–6500K(CCT) | |
| Luminous flux | 460(±10%)Lm/M | |
| RA≥90 | ||
| Lumen maintenance | ＜5%@1000h | |
| IP rating | IP20 | |
| Operating temperature | -20℃~+40℃ | |
| Storage temperature | -20℃~+60℃ | |
| 20000hrs | ||
| RoHS(EU)2015/863 |
:Data subject to the test report.
